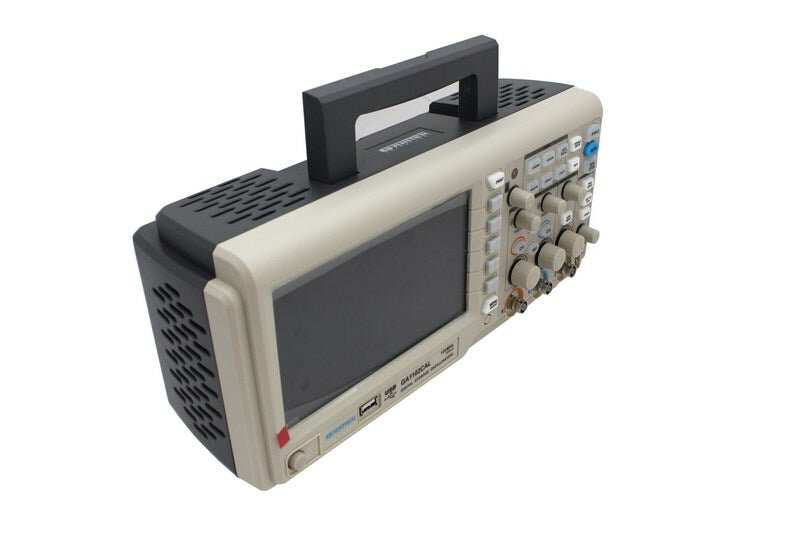

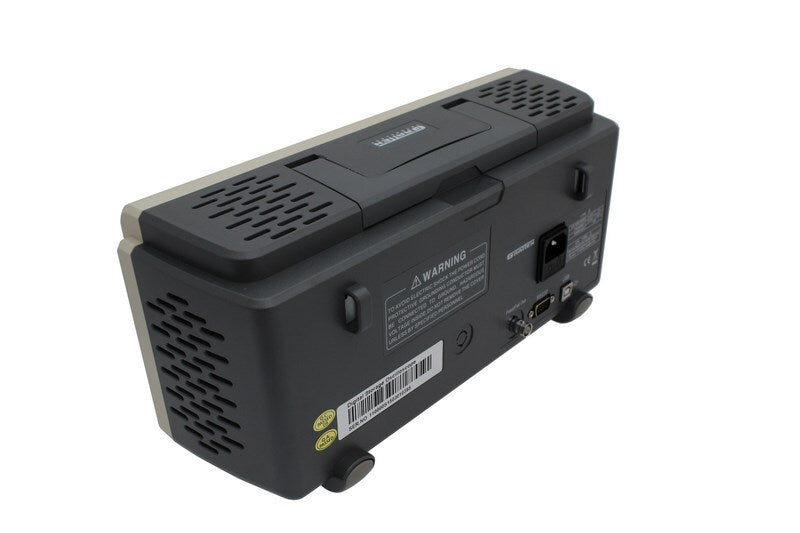

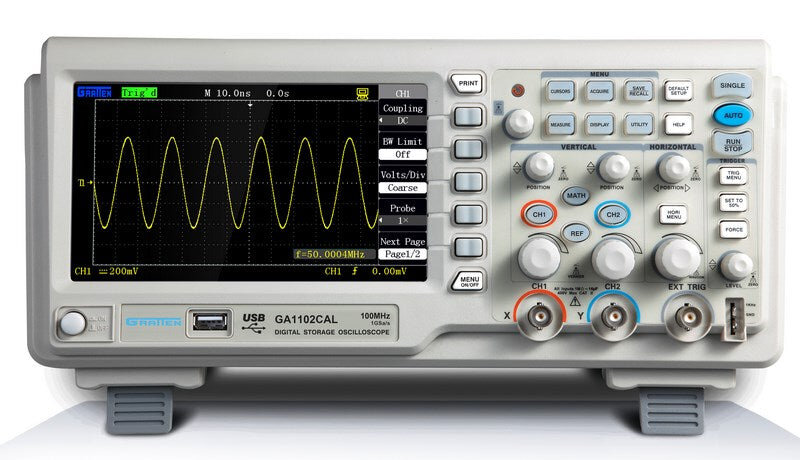

100MHz Digital Storage Oscilloscope
Note: Although we no longer stock this product, we still carry a range of electronic test equipment.
With a huge 7 inch LCD screen, 32 automatic measurement & tracking functions and a dual sampling mode, the 100MHz Digital Oscilloscope is ideal for troubleshooting, manufacturing and repairing electronic equipment. Designed to meet the demanding needs of any electrical engineer, this Oscilloscope has everything you need to measure and analyse electrical circuits in detail.
Using real-time sampling, this Oscilloscope features 1GSa/s rapid sampling in single-channel mode and 500MSa/s in dual-channel mode. The 32 automatic measurement functions help you find faults faster than ever before, giving you a clear reading every time with the Small Signal Capture function.
The on board storage is capable of storing two waveforms and displaying them on the huge 7 inch screen for direct comparison, enabling consistent prototyping and troubleshooting on multiple devices.
This Oscilloscope has full USB support including full USB Host and Device functions so you can connect directly to any PC and through remote PC connections using the supplied GAScope1.0 PC software.
Features:
- New ultra-thin appearance design, small and portable.
- 7-inch widescreen TFT LCD display.
- 32 automatic measurement & tracking functions.
- Full USB host and USB device support.
- Trigger functions include edge, pulse, video, slope and alternation.
- CD containing GAScope1.0 PC software.
Contents:
- 1 x 100MHz Digital Oscilloscope.
- 1 x 1:1 probe.
- 1 x 10:1 probe.
- 1 x USB connection cable.
- 1 x UK mains power cable.
- 1 x GAScope 1.0 PC software CD.
- 1 x User’s manual.
- 1 x Product warranty card.
- 1 x Certificate of approval.
Possible Applications Include:
- Electronics design, troubleshooting and maintenance.
Dimensions:
- Length: 399mm.
- Width: 111mm.
- Height: 149mm.
Resources:
- Datasheet.
- This product is supplied with a UK mains plug and is designed to work off a 230V, 50Hz supply.
