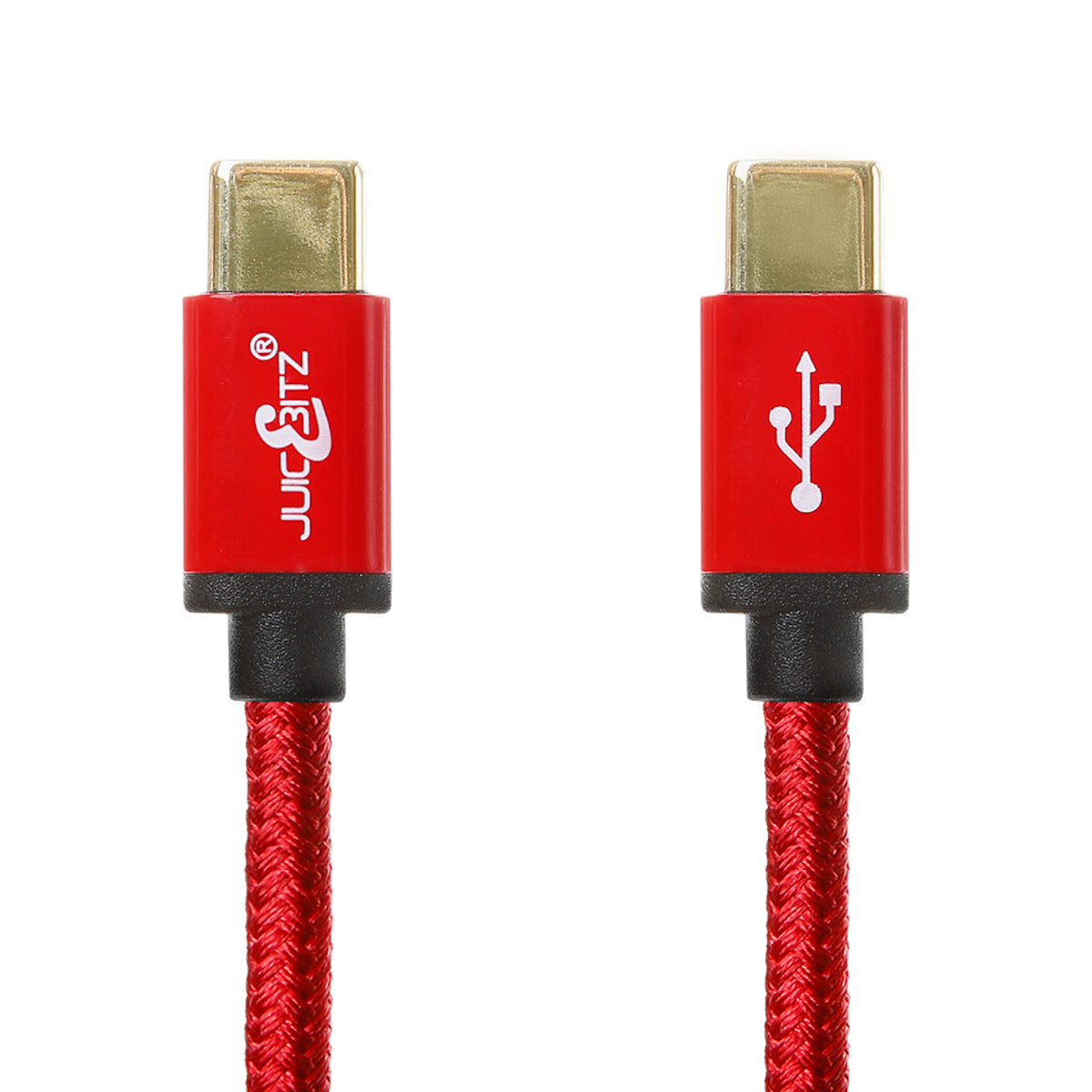

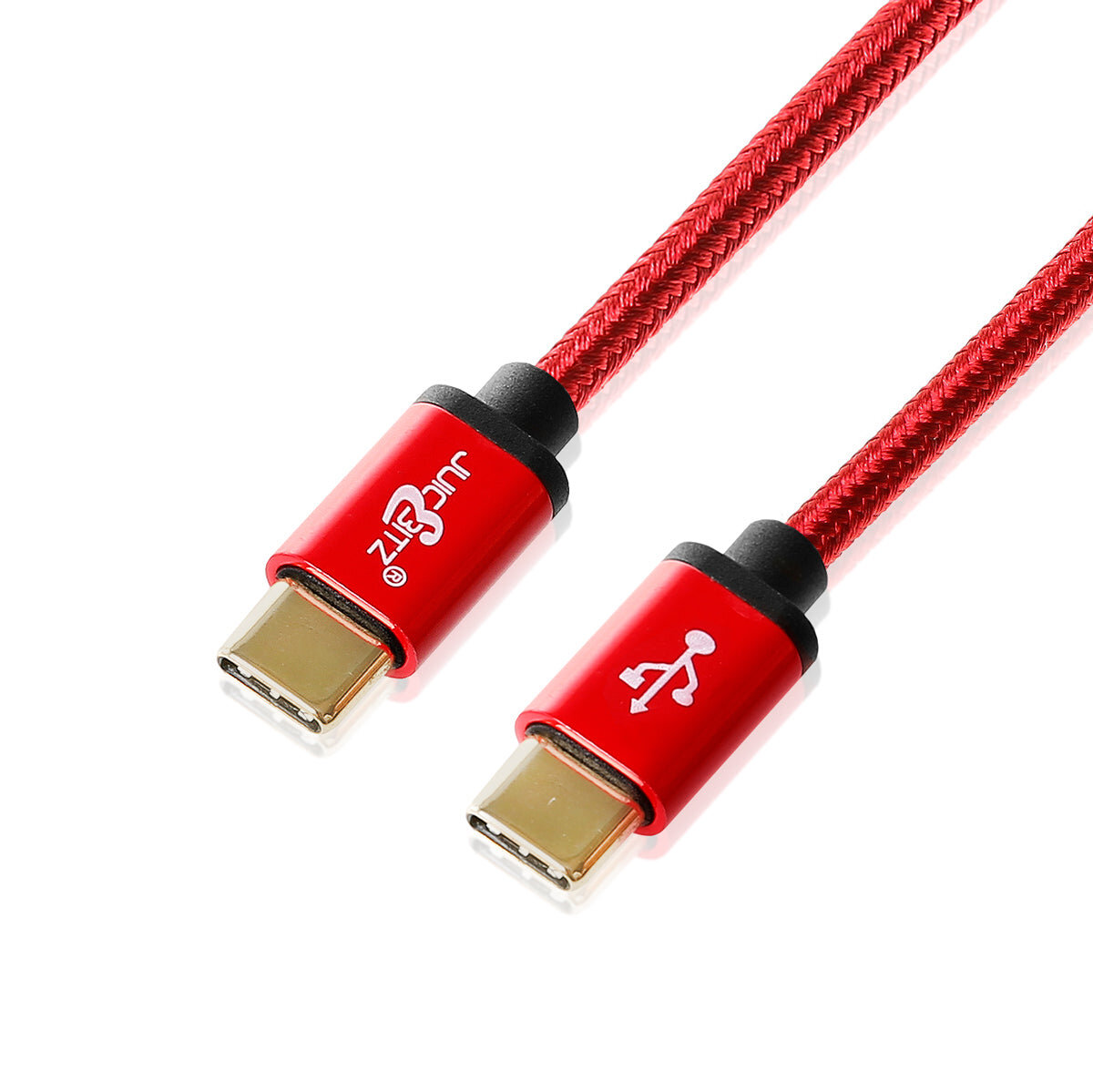

Braided USB-C to USB-C 3A Fast Charger Cable USB2.0 Data Transfer Lead – Red
Our Premium 20AWG USB Type C to USB Type C cables are compatible with all USB-C PD Chargers – enabling safe, stable, quick charging of mobile phones and tablets as well as high speed data transfer with USB 2.0 specifications, up to 480mbps.
For more information on USB-C Power Delivery visit http://www.usb.org/developers/powerdelivery
Primary Features:
- Charging Standards Supported: Standard (5v) & USB Fast Charging (5v/9v/12v)
- Premium Quality: Low Resistance 20AWG Pure Tinned Copper Core
- Connected to USB-C Data Port: 500ma (max), 480mbps (USB2.0 Specification)
- Direct Charging: Up to 36W (12V/3A max)
- e-Mark Chip: Yes
Specifications:
-
American Wire Gauge (AWG): 20C/28D (C=Charge, D=Data)
- Connector 1: Male USB Type-C (2.0) 24 Pin; Fully Gold Plated
- Connector 2: Male USB Type-C (2.0) 24 Pin; Fully Gold Plated
- Conductor: Pure Tinned Copper
- Aluminium Mylar Foil Shield: 15um
- Jacket: PVC 60P, Half Matt
- Outer Braid: Woven Nylon, 0.2mm
- Diameter: 4.2mm +/- 0.1mm
- Max Conductor Resistance at 20°C (Ω/Km): 109.2Ω
- Tensile Strength (Kgf/mm²): 2.11 / =70% of original
- Certifications: UKCA, CE/ROHS, FCC
- USB Electronic Testing: (Cert#11632/16-09-EAX-003-E00)

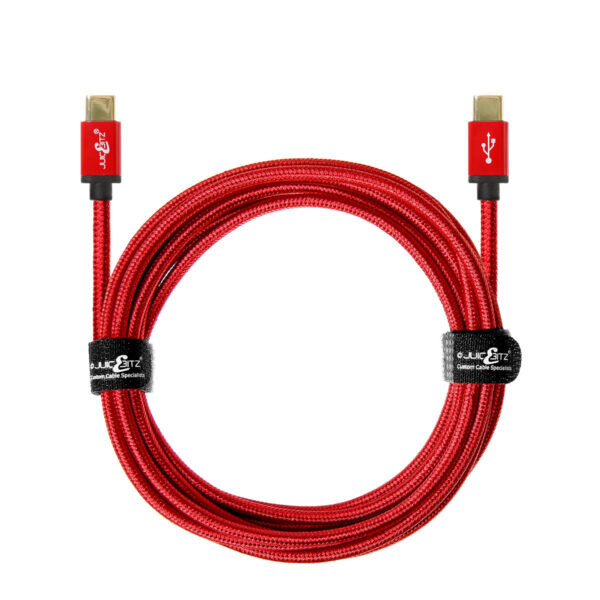

- Fastener Included: Yes, Velcro
- Warranty: 2 Years.
Compatibility:
- USB-C (Type C) to USB-C (Type-C), (rev1.0)
- All devices that USB-C Standard or PD Charging (PD1.0 or higher) with a USB-C interface
- Some recognisable and most recent models include the Samsung Galaxy Series, Google Pixel Phones, LG Phones, Huawei, Sony Xperia, Apple iPad Pro and more.
All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can contact us via our contact page or call 01723 332269 and one of our advisers will be happy to help.
