Connectors for 8mm width LED Strip
These super convenient connectors for 8mm width LED Strips take all of the hassles out of using these style LED strips in your projects and designs. Clip to the LED strip without having to solder anything, and then connect the flying leads to a power supply, and you’re done! If you’ve ever had to solder to LED strips you’ll know how handy these clips are, and how much time and frustration they can save you. They are supplied as single units.

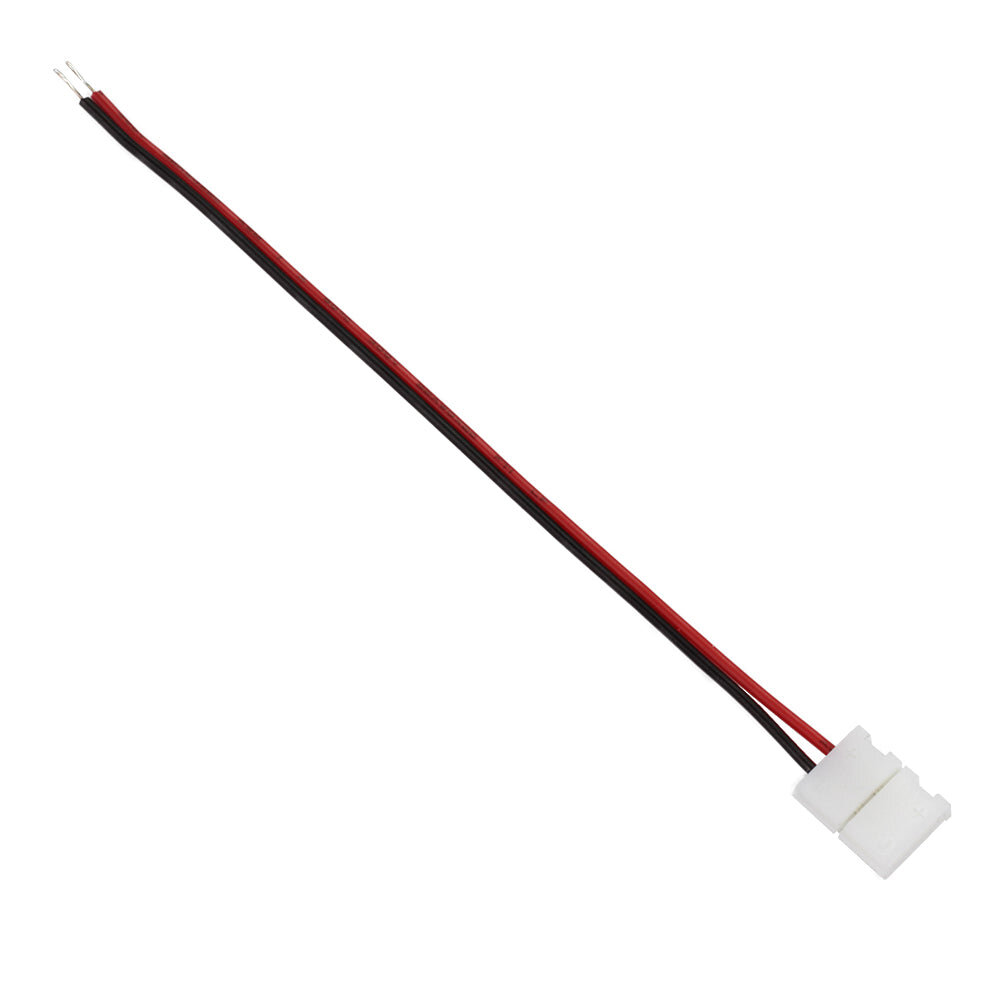

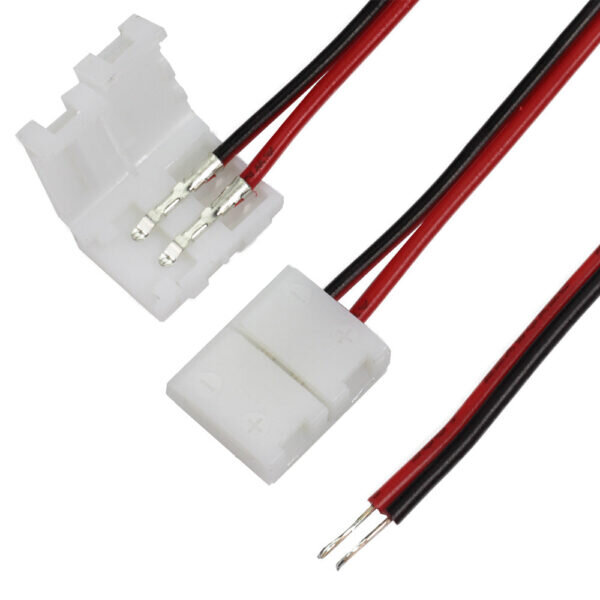

The connectors feature a plastic clip at one end and flying leads at the other. The plastic clip pops open to reveal two power connectors that line up perfectly with the power pads on 8mm width LED Strips, the clip pops closed and holds the LED Strip firmly in place. The colour-coded (black & red) flying leads are 137.7mm in length and have exposed and pre-tinned ends.

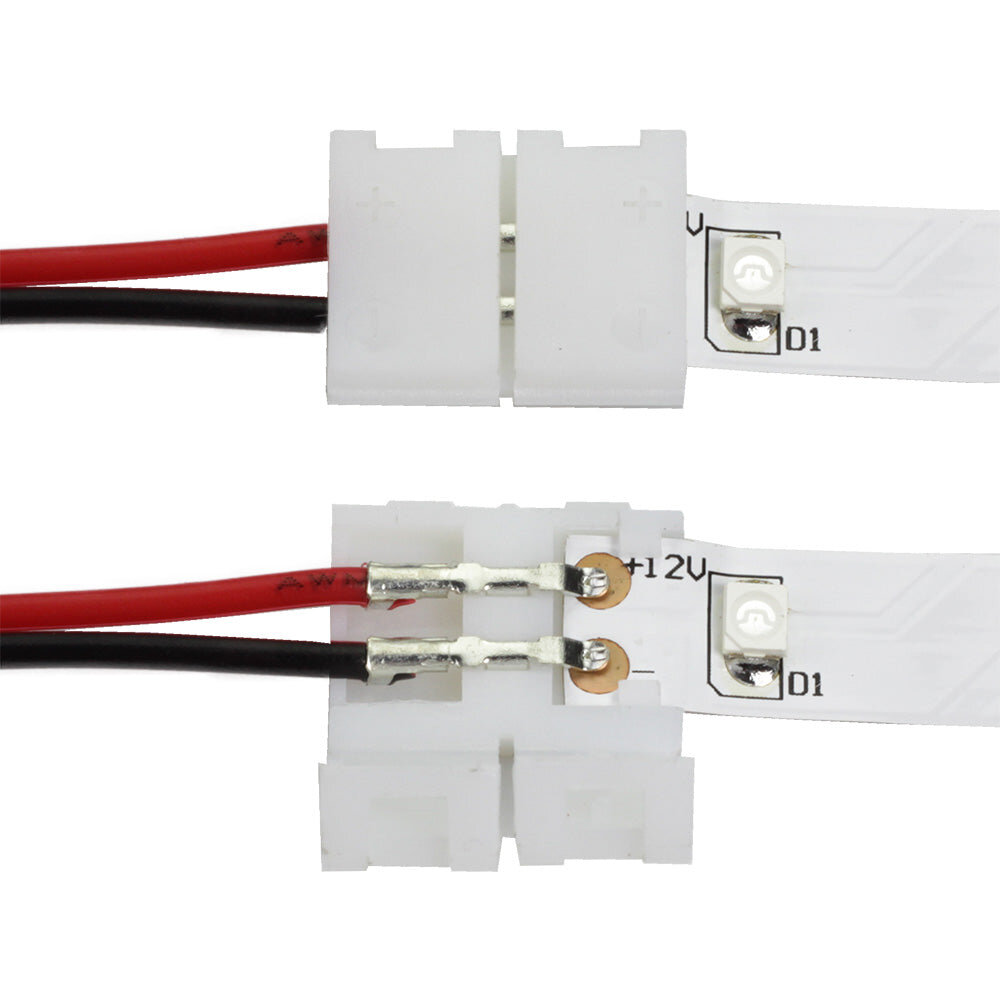

To Use: Take an 8mm LED strip of the desired length. Then open the plastic clip of the connector and push the LED strip under the power connections, ensuring that the connections are in contact with the pads and in the correct orientation. Gently push the connector closed until it pops shut. Connect the colour-coded wires on the connector to a suitable power supply, ensuring that they are connected in the correct orientation.
Features:
- Super convenient connectors for 8mm width LED Strips.
- The connector pops open and closed easily.
- Connect a power supply to 8mm strips without the need to solder.
- The plastic clip pops open to reveal two power connectors that line up perfectly with the power pads on 8mm width LED Strips.
- The colour-coded (black & red) flying leads are 137.7mm in length and have exposed and pre-tinned ends.
- They are supplied as single units.
Contents:
- 1 x Connector for 8mm width LED Strip.
Dimensions:
- Plastic Clip Length: 15.5mm (nominal).
- Plastic Clip Width: 12.2mm (nominal).
- Plastic Clip Thickness: 4.5mm (nominal).
- Flying Lead Length: 137.7mm (nominal).
Requires:
- We stock a number of 8mm width LED Strips, all of which are suitable for use with this Connector, see below;
- White Flexible LED strip – 30 way, 12V.
- Blue Flexible LED strip – 30 way, 12V.
- Red Flexible LED strip – 30 way, 12V.
- Yellow Flexible LED strip – 30 way, 12V.
- Green Flexible LED strip – 30 way, 12V.
- White Flexible LED strip, 300 LEDs, 5VDC, 5m Reel.
