Electro-Fashion: Igloo, PICAXE wearable module
This wearable module is ideal for all of your e-textiles project needs including adding the endless possibilities of programming to your wearable projects!
This PICAXE wearable module offers an easy introduction to the world of wearables. The board can be used to read inputs such as switches and sensors. You can also control outputs like LEDs, buzzers to add another dimension to your next wearable project!
It is packed full of features and like all of our Electro-Fashion PCBs is double sided and has large connection points for the conductive thread making the connection very reliable. You can use Miniature Crocodile Clip Leads for prototyping

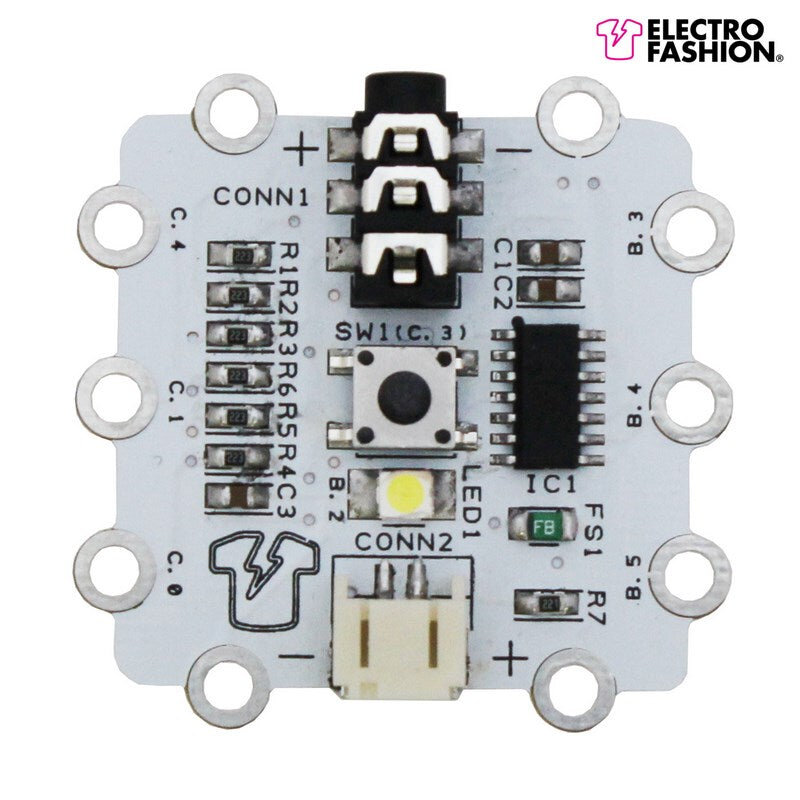

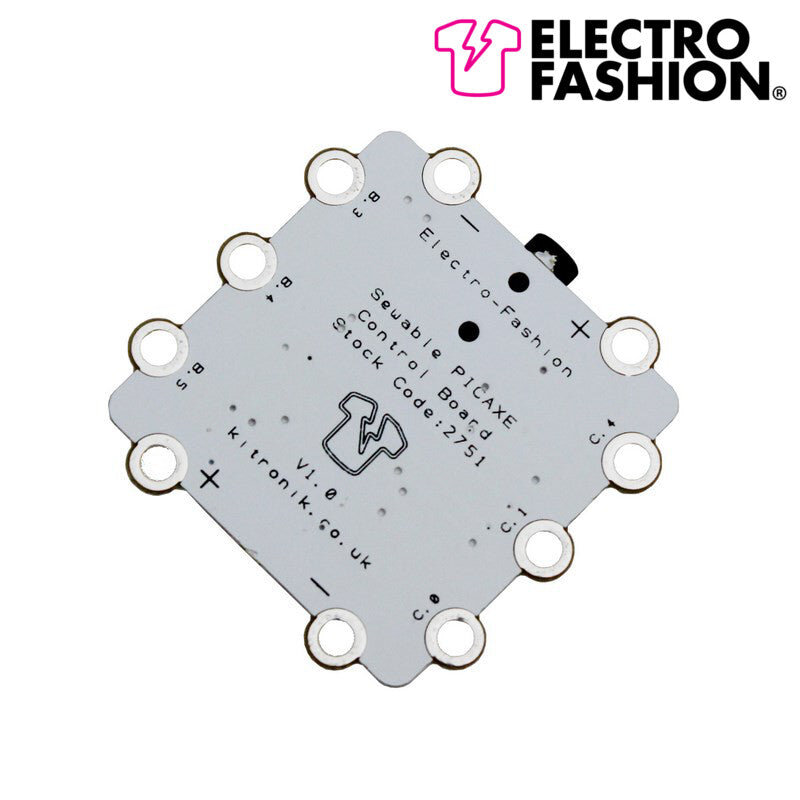

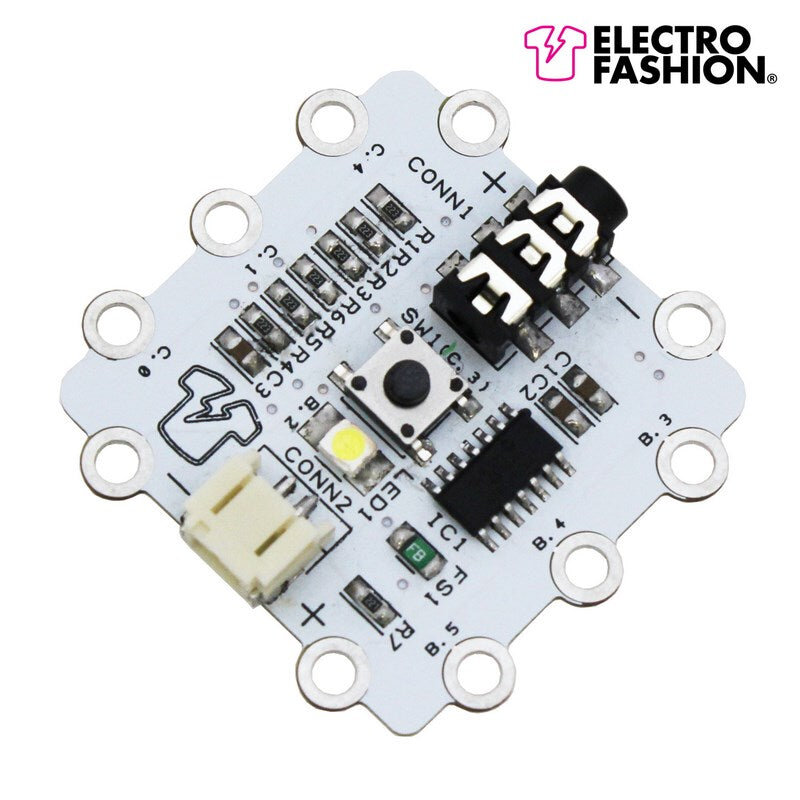

On-board there is a PICAXE 14M2 programmable IC, a dimmable white LED, a momentary push switch, a 3.5mm stereo socket for ease of programming, and a JST connector for attaching a battery pack. It can be powered either by the JST connector, or the clearly marked ‘+’ and ‘-‘ connections via conductive thread, from a power source between 3V and 5.5V.
There are three different ways you can connect a portable power supply to the Igloo including using a 2xAAA Battery Cage with JST Connector, a Sewable Coin Cell Holder or an E-Textiles Polymer Lithium Ion Battery (3.7V, 110mAh). You could also use a Polymer Lithium Ion Battery with a JST Connector as an alternative (Please note: The Igloo does
not have a built-in charging circuit).
There are also 6 sewable I/O pins, making this a really versatile control board. Pins C0, C1, B5, B4, B3, B2 (the on-board LED) have Pulse-Width Modulation (PWM) and Pins C0, C4, B5, B4, B3 have built in Analogue-to-Digital Conversion (ADC).
Pull-down resistors have been included on the board for pins C0, C1 and C4 so that you can easily use those pins with switches from our Electro-Fashion range.
The board can be programmed via the official PICAXE software in BASIC or flowcharts or in Blockly to make programming accessible even to complete beginners. PICAXE also have their own stand-alone Blockly software that works with Igloo. Just download the free software from our PICAXE section of our website and connect the board to a PC via a PICAXE USB download cable.
Video:
Please note: other Kitronik products are included in this video.
Features:
- Built in PICAXE 14M2 programmable IC.
- On-board dimmable white LED.
- On-board switch.
- 6 sewable I/O pins.
- JST connector and sewable ‘+’ and ‘-‘ pads.
- 3.5mm stereo jack for programming.
- Low profile and compact size.
Contents:
- 1 x Electro-Fashion: Igloo, PICAXE wearable module.
Dimensions:
- Length: 40mm.
- Width: 40mm.
- Height: 7mm.
Requires:
- 1 x PICAXE USB Download Cable.
- Either: Conductive Thread.
- Or: 28mm Crocodile Clips.
Suitable Power Sources include:
- Either: Electro-Fashion, Sewable Coin Cell Holder.
- Or: 2xAAA Battery Cage with JST Connector.
- Or: E-Textiles Polymer Lithium Ion Battery (3.7V, 110mAh).
- Or: Electro-Fashion, Latching Switch Coin Cell Holder.
Accessories:
LEDs:
- Compatible LEDs.
- Electro-Fashion, Sewable 5mm LED Holder, pack of 10.
- Electro-Fashion, LED Board, White.
- Electro-Fashion, LED Board, Blue.
- Electro-Fashion, LED Board, Red.
- Electro-Fashion, LED Board, Green.
- Electro-Fashion, LED Board, Sakura (Lilac).
Light Detectors:
- Electro-Fashion, Light Level Detector.
Buzzers:
- Electro-Fashion, Sewable Buzzer.
Switches:
- Electro-Fashion, Latching Switch.
- Electro-Fashion, Push Button Switch.
- Electro-Fashion, Tilt Switch.
- Electro-Fashion, Slide Switch.
- Electro-Fashion, Magnetic Switch.
Resources:
- Click here to download the Starter Guide.
- E-Textiles Tutorials & Resources.
Tutorials:
- Tutorial 1: Getting Started with Igloo: ‘Hello World’.
- Tutorial 2: Momentary Switch.
- Tutorial 3: Blink – External Digital Output.
- Tutorial 4: Fading LED – Pulse Width Modulation.
