Electro-Fashion, LED Board, White

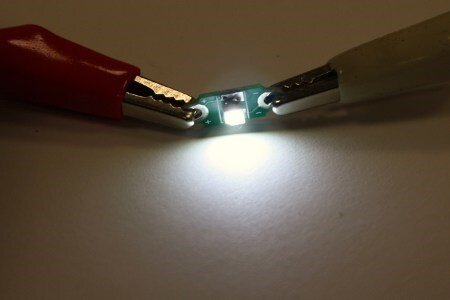

These ultra slim, pre-mounted e-textile LEDs from Kitronik run off a 3V coin cell battery and are illuminated continuously when powered.
They have connections to which the conductive thread can be connected. These are clearly marked with ‘+’ and ‘-‘ to indicate which is the positive and which is the negative connection.
The PCBs are double sided making the conductive thread connection very reliable (see example picture below).
Features:
- Ultra Slim Sewable LEDs.
- Double Sided PCBs for reliable connections.
- Clearly marked ‘+’ and ‘-‘ connections.
Contents:
Pack of 10:

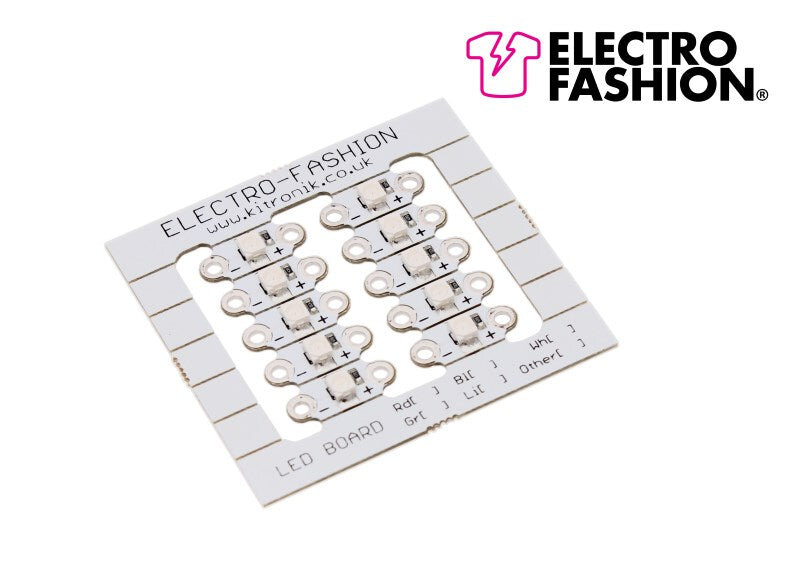

- Pack of 10 LEDs (supplied on a small panel, easily removed by snapping them out).
Single:
- Individual LED (ready to use).
Dimensions:
- Length: 15mm.
- Width: 6.5mm.
- Height: 2.7mm.
Resources:
- E-Textiles Tutorials & Resources.
Example Circuit:
.
For illustration only, not actual components provided.
