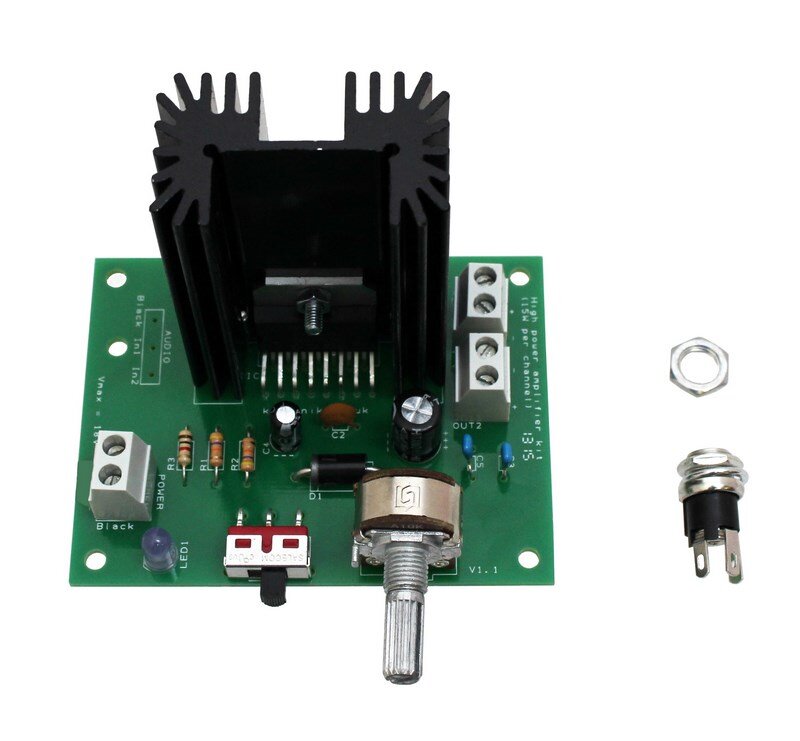

Kitronik High Power Amp Kit (PCB & Components)
This amplifier kit can output up to 15W per channel into a pair of high quality speakers. The kit is capable of producing a very loud, high quality stereo sound. The product includes all the components required to build the PCB, but not a power supply, speakers or cable to connect it to audio equipment. A complete version with the speakers, power supply and audio cable is available as a complete kit.
It features a power LED, on / off switch and volume control.
This kit includes:
- 1 x Printed circuit board
- 1 x TDA7297 audio amplifier IC
- 1 x Heat sink
- 1 x M3 nut and bolt
- 1 x 10Kohm dual potentiometer
- 2 x 47Kohm resistors
- 1 x 1Kohm resistor
- 1 x 1N5400 diode
- 1 x Blue LED
- 1 x 470uF capacitor, electrolytic
- 1 x 10uF capacitor, electrolytic
- 1 x 100nF capacitor, ceramic disc
- 2 x 220nF capacitor, ceramic disc
- 1 x Right angle PCB mounting power switch (high current)
- 3 x Two way terminal blocks
- 1 x Panel mounting DC power socket
PCB dimensions: 77.5mm x 59mm. Four mounting points are available, one in each corner.
This kit requires soldering.
Click here to download the essential information
Click here to download the full teaching resources
Note: The heat sink will become hot when the amplifier is used at a high volume for long periods of time. For the heat sink to work at its best it should be mounted in a well ventilated case.
You may also wish to buy some of the following items: (if you are buying all of them then it will be cheaper to buy the version with all the parts)
- 2 x 20W full range speakers
- 1 x 12V, 2A wall block PSU
- 1 x iPod cable or 3.5mm stereo jack cable
