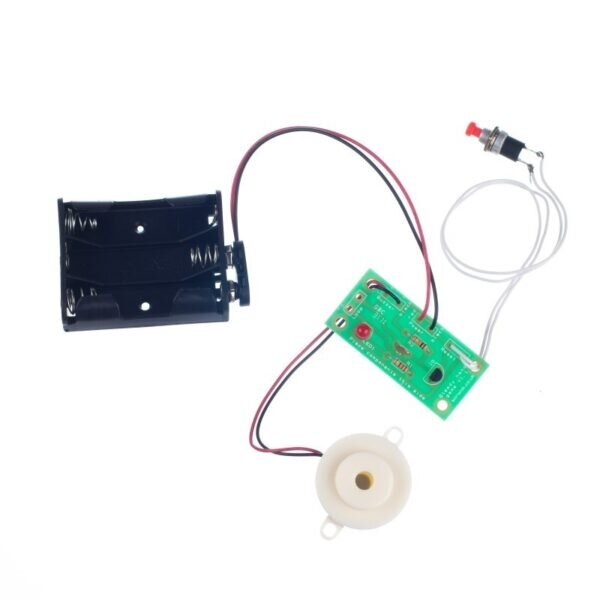

Kitronik Steady Hand Game Project Kit (with Latch)

Pack Size	Clear

This steady-hand game has a buzzer that sounds momentarily when the loop makes contact with the wire.

It also has an LED, which latches on when the buzzer sounds via the use of a thyristor. It then remains on so that even the briefest contact of the loop with the wire can be indicated. A push button is used to reset the LED.

Features:

Buzzer sounds when loop makes contact with wire.
LED latched until reset button is pressed.
Bright LED to notify user.
Loud buzzer sound.

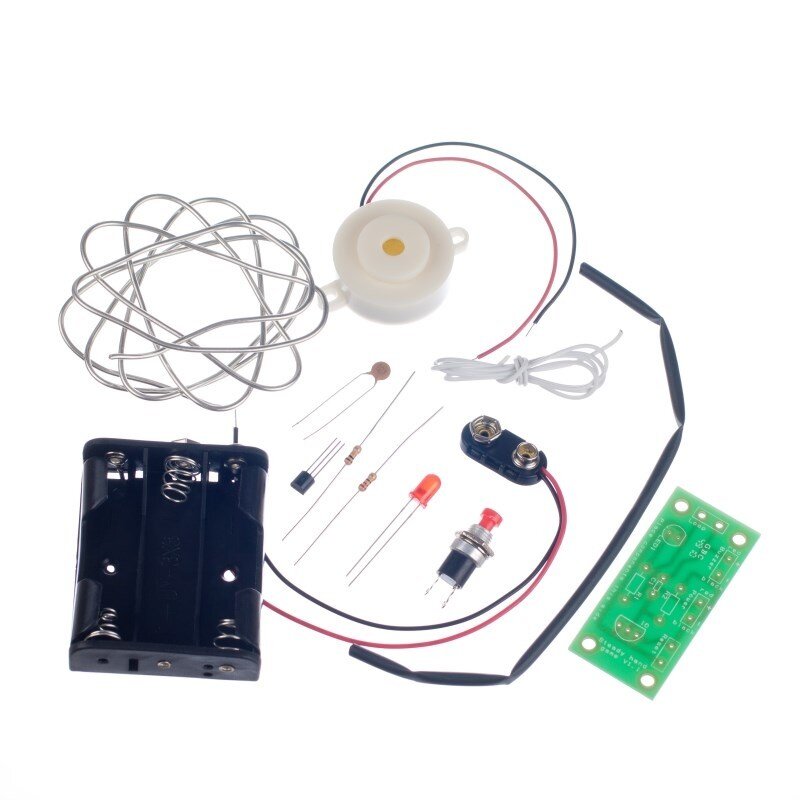

Contents (per kit):

1 x PP3 Battery Clip Lead (Heavy Duty).
1 x 3xAA Battery Cage with Clip.
1 x 1m Extra Flexible Wire, Black.
1 x 1m Solid Core Cable.
1 x Piezo Buzzer (with Drive).
1 x 220R Resistor.
1 x 10K Resistor.
1 x Capacitor, Ceramic, 50V, 10nF.
1 x 2N5061 Thyristor.
1 x Red 5mm Diffused LED – 275mCd.
1 x Miniature Push to Make Switch, Red.
1 x 20cm length Black Heat Shrink, 2.4mm.
1 x Steady Hand PCB.

Contents (per pack of 24 kits):

24 x PP3 Battery Clip Lead (Heavy Duty).
24 x 3xAA Battery Cage with Clip.
1 x 25m Reel Extra Flexible Wire, Black.
1 x 25m Reel Solid Core Cable.
24 x Piezo Buzzer (with Drive).
24 x 220R Resistor.
24 x 10K Resistor.
24 x Capacitor, Ceramic, 50V, 10nF.
24 x 2N5061 Thyristor.
24 x Red 5mm Diffused LED – 275mCd.
24 x Miniature Push to Make Switch, Red.
3 x 1m length Black Heat Shrink, 2.4mm.
24 x Steady Hand PCB.

Dimensions:

PCB Length: 52mm.
PCB Width: 25mm.

Requires (per kit):

3 x AA Batteries.
Pliers.
Soldering Iron.
Solder.
Wire Cutters.
Wire Strippers.

Requires (per pack of 24 kits):

72 x AA Batteries.
Pliers.
Soldering Iron.
Solder.
Wire Cutters.
Wire Strippers.

Note:

For a pack of 24 the cables are supplied on reels with the remaining parts being individually bagged, for a pack of 1 the cables are supplied in the bag.

Resources:

Click here to download the essential information
Click here to download the full teaching resources

Note: this product is sometimes miss spelt as stedy hand game
