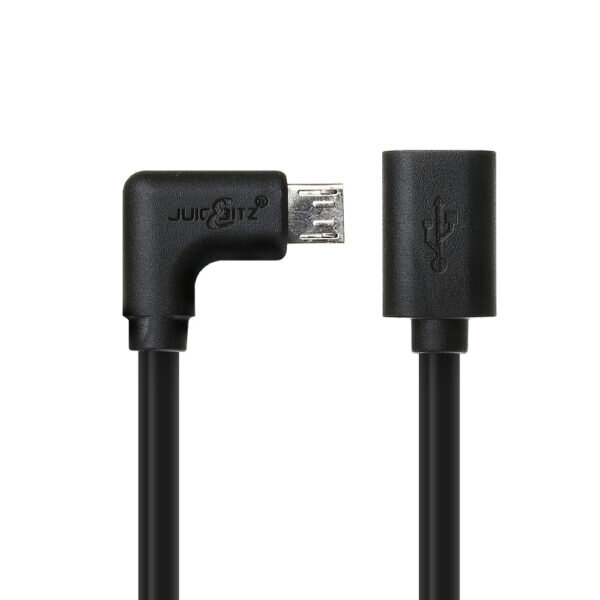

Micro USB2.0 Female Extension to Male Angled Micro B Cable – Black
Extremely well suited extension cables, for powering up Amazon Fire Sticks, Google Chromecast and other similar Android TV Dongles.
Fully compatible with all USB 2.0 Micro-B devices, for power and data transfer.
22AWG USB Micro B Female to Micro B Male extension cables offer a different approach to extension leads from standard Type A to Type A versions. Perfect for use with your original manufacturers cable to extend its range.
We have specifically designed these with a thick 22AWG Pure Tinned Copper Core (TCu) material for a low resistance, high performance product. This particular model features an angled micro usb connector instead of straight.
Specifications:
-
American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)
- Connector 1: Female USB 2.0 (Micro B) 4 Pin; Gold Plated Pins
- Connector 2: Right Angled Male Micro USB 2.0 (Micro B) 4 Pin; Gold Plated Pins
- Conductor: Pure Copper, [19/0. 08+/-0.008MM] + [21/0. 18+/-0.008MM]
- Specification: 2725#28/2C+#22/2C+AB
- Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
- Aluminium Mylar Foil Shield: 15um
- Jacket: PVC 60P, Half Matt
- Diameter: 4.2mm +/- 0.1mm
- Certifications: UKCA, CE/ROHS, FCC
- Fastener Included: Yes, Velcro
- Warranty: 18 Months.
Compatibility:
- Supports High Speed Data Transfer up to 480Mbps.
- Universal: Micro USB Female to Micro USB Male.
All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can contact us via our contact page or call 01723 332269 and one of our advisers will be happy to help.
