Premium USB 2.0 Male to Type-B Shielded (Printer Scanner) Cable
Commonly used with all USB Printers, with the smaller USB 2.0 Port – these cables are also used in Midi Systems/AUX input sockets and DAC systems.
This cable is well manufactured and designed to give optimum performance over longer distances with 24AWG Pure Tinned Copper (TCu) cores. It also features a moulded connector within a strong aluminium shell. The cable itself is shielded to prevent electromagnetic (EMI) or radio-frequency (RFI) interference.
Adhering to USB 2.0 specifications it is also supports USB data transfer up to the required 480Mbps. Suitable for home, office or industrial – it is an excellent all round cable for use in any environment.

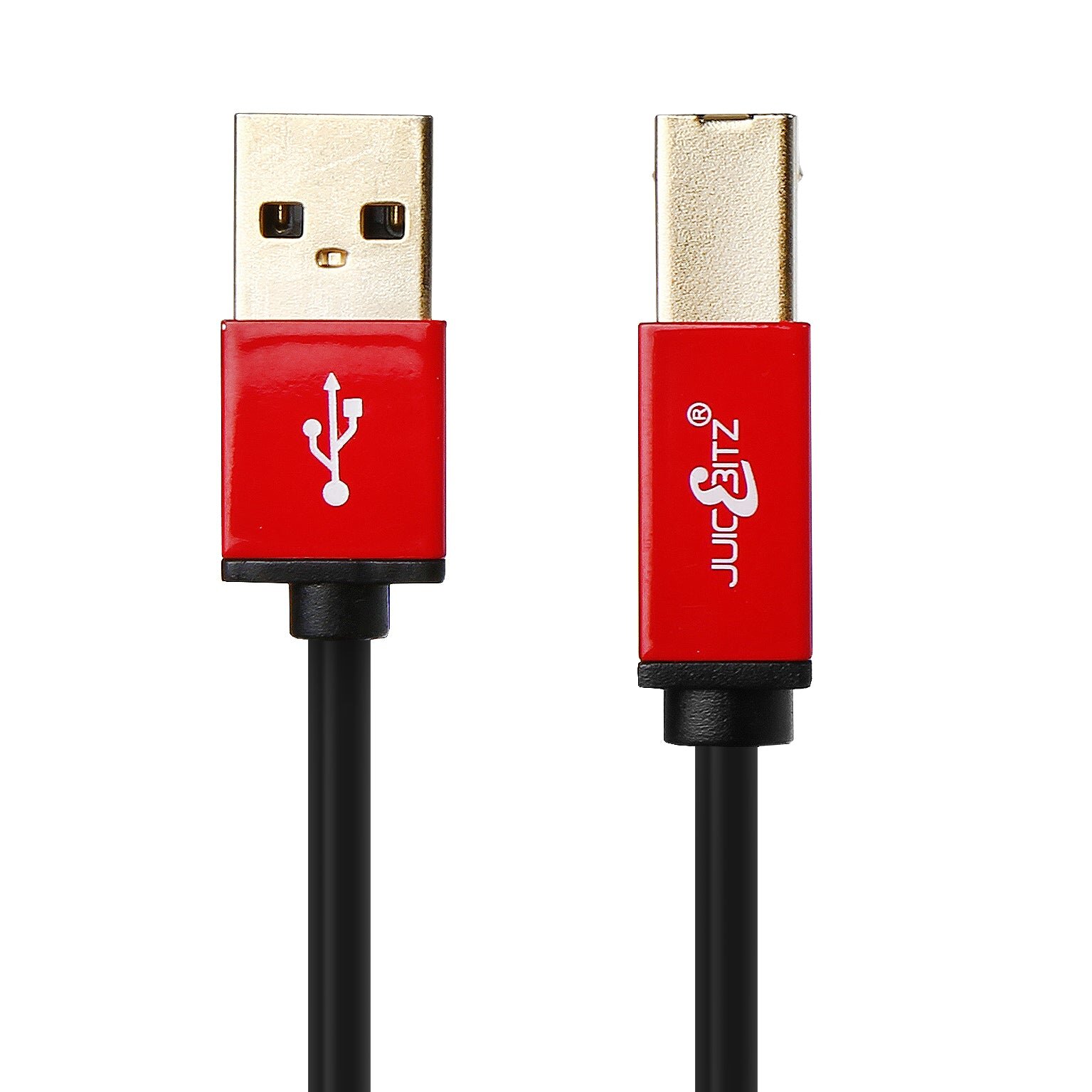

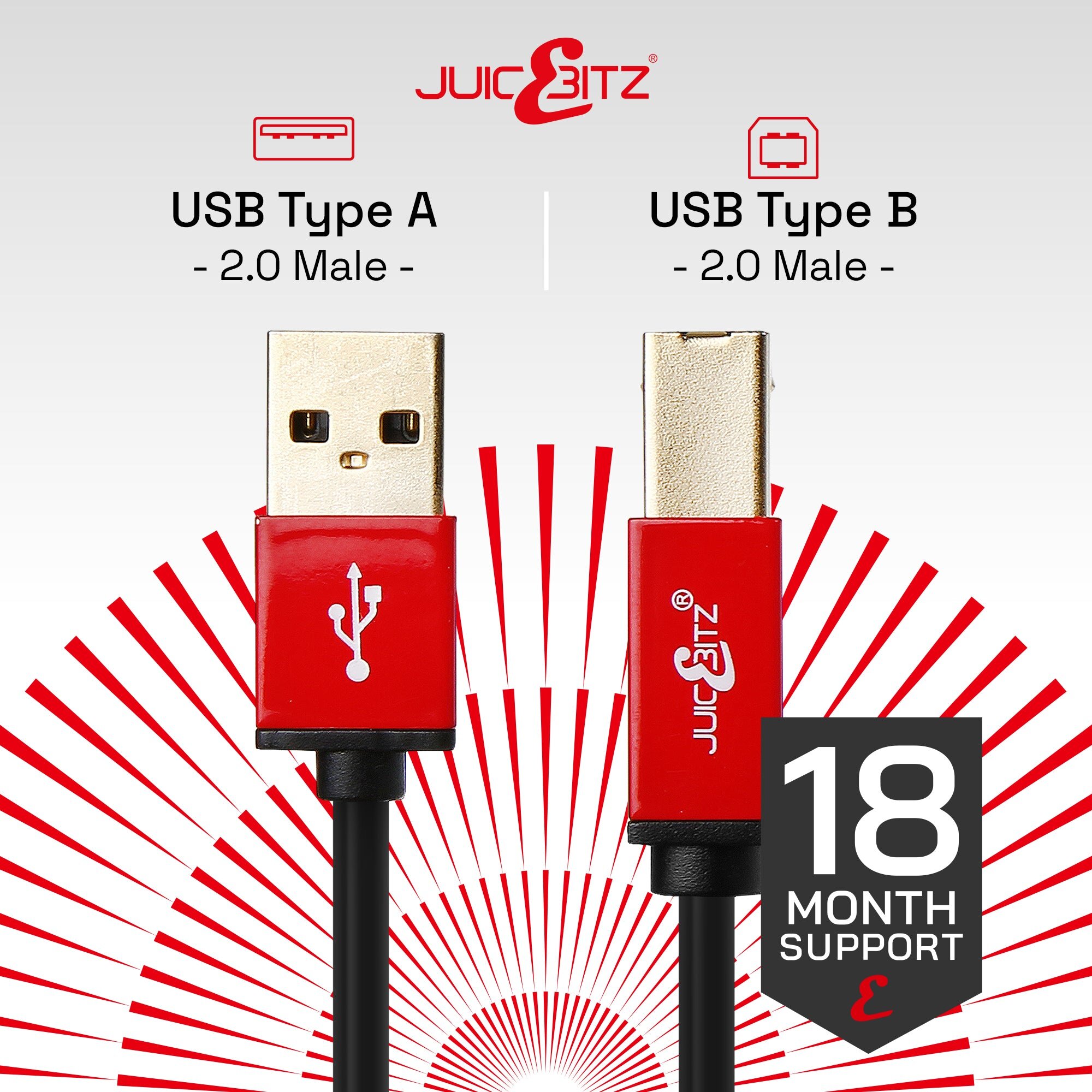

- Connector 1: Male USB 2.0 (Type A) 4 Pin; Fully Gold Plated
- Connector 2: Male USB 2.0 (Type B) 4 Pin; Fully Gold Plated
- Conductor: Pure Tinned Copper [19/0. 08+/-0.008MM]
- American Wire Gauge (AWG): 24 AWG
- Specification: 2725#24/2C+1AB
- Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
- Aluminium Mylar Foil Shield: 15um
- Jacket: PVC 60P, Half Matt
- Diameter: 3.8mm +/- 0.10mm
- Certifications: UKCA, CE/ROHS, FCC
- Fastener Included: Yes, Velcro
- Warranty: 2 Years.
All manufacturers will state in their manuals what cable is used, or you can find the information on your Printer Manufacturer’s Website. Here is a list of some of the most popular manufacturers:
- Canon – visit their support site HERE
- Lexmark – visit their support site HERE
- HP – visit their support site HERE
- Brother – visit their support site HERE
- Xerox – visit their support site HERE
- Samsung – visit their support site HERE
- DELL – visit their support site HERE
or you can contact us via our contact page or call 01723 332269 and one of our advisers will be happy to help.
