Quad 2 Input NAND Gate (4011B)

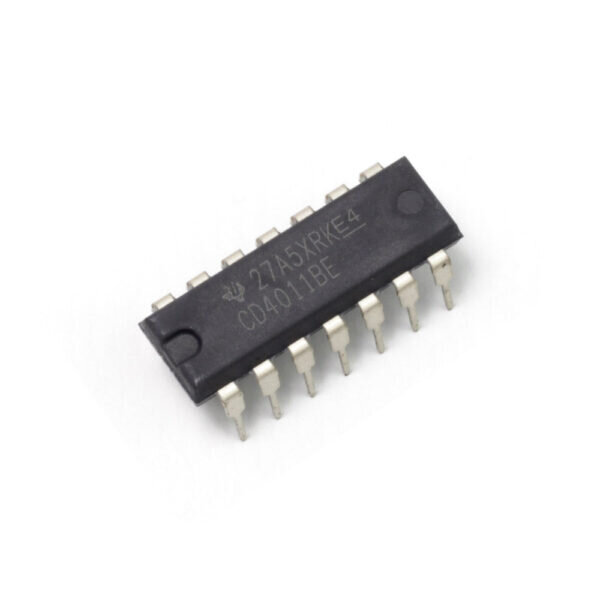

A Quad 2 Input NAND Gate using CMOS technology and supplied in a 14 pin DIL package. All inputs and outputs are buffered.
Pin Out information:
NAND gate functionality
The NAND gate takes in two inputs. When both Input A AND Input B are high the output will be NOT active.
| Input A | Input B | Output Z | |
| 0 | 0 | 1 | |
| 0 | 1 | 1 | |
| 1 | 0 | 1 | |
| 1 | 1 | 0 |
Resources:
- Click here to download the data sheet for this part.
- Click here to download operating information for this part.
