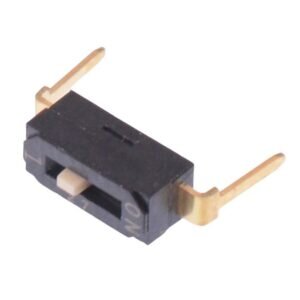

IKE0100101 APEM 1-Way 2.54mm Through Hole PCB DIP Switch SPST £0.38

SA1U-D01MW Photoelectric Sensor Diffuse-Reflective Without Time Delay NPN / PNP IDEC

£29.11

6 Items sold in last 18 minutes
  • 30 days easy returns
  • Delivery within 2-5 days
10 People watching this product now!
SKU: UK-8936226488629 Category: Other
  • Description
Description

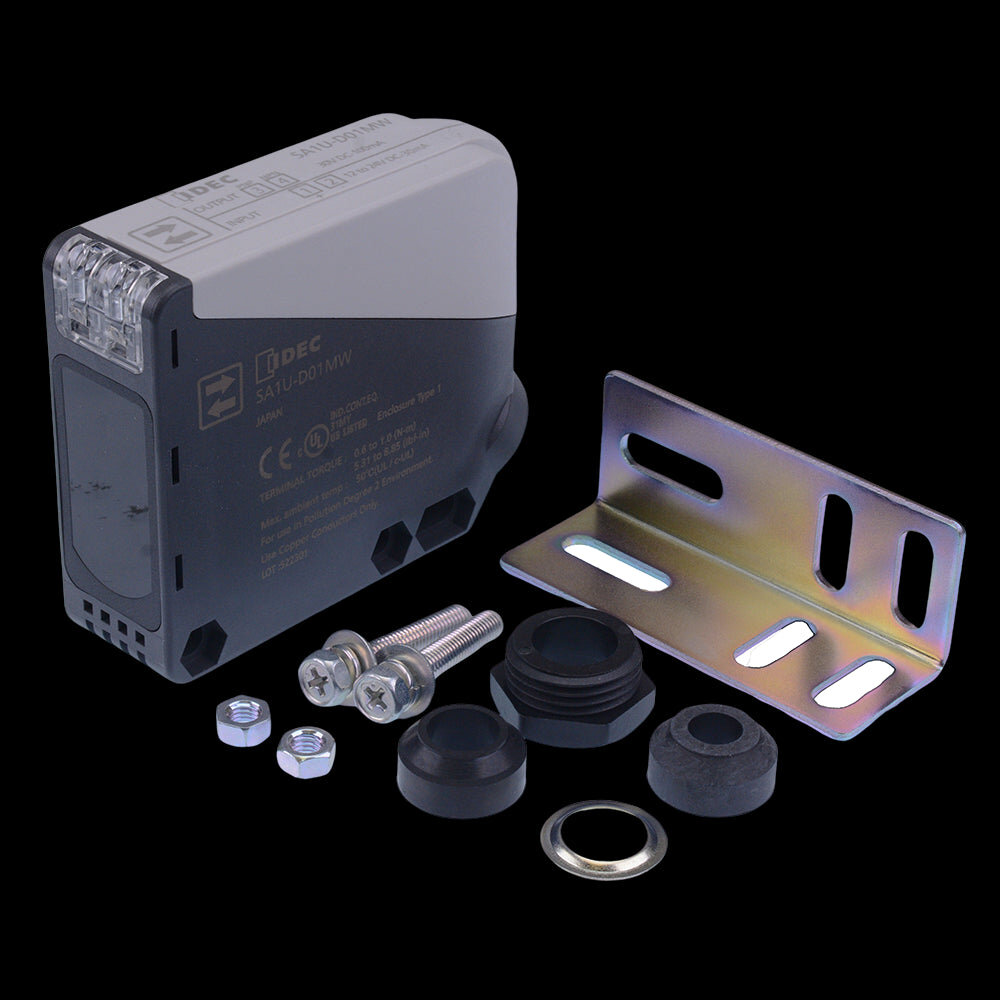

SA1U-D01MW Photoelectric Sensor Diffuse-Reflective Without Time Delay NPN / PNP IDEC
The SA1U-D01MW is a heavy duty photoelectric sensor switch featuring diffuse-reflective sensing, capable of sensing opaque and transparent objects up to a 1 meter distance. The sensor features NPN and PNP open collector dual outputs and interference prevention allowing two units to be mounted in close proximity.

  • Sensing method: diffuse-reflective
  • Detectable object: opaque
  • Screw terminals for easy wiring
  • Sensing range: 1m maximum
  • Response time: 1ms max
  • Power voltage: 12 to 24V DC
  • Control output: NPN and PNP open collector dual output
  • Operation mode: light ON or dark ON
  • Light emitting element: infrared LED 870nm
  • Sensitivity adjustment: 1 turn control knob
  • Time delay: without
  • Current draw: 30mA max
  • Protection level: IP67
  • Dimensions: 90 x 25 x 67.5mm (length x width x height)
