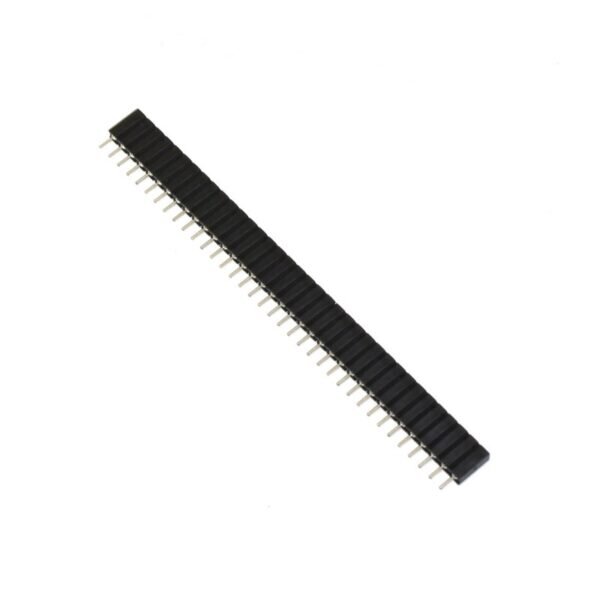

Straight Single Row Turned Pin Sockets, 2.54mm, 36-way
36-way SIL pin sockets, perfect for using with our Pin Headers.
The pin sockets accept both square and round pin headers, for wider compatibility. These pin sockets come in a 36-way row with 2.54mm spacing, however can easily be cut down to your required length.
Features:
- Closed-pin design prevents solder wicking or flux ingress.
- Can be easily cut down to required length.
- Accepted square pin headers up to 0.65mm, as well as round pins between 0.65mm and 0.85mm in diameter.
Contents:
- Single In Line Turned Pin Sockets, 2.54mm, 36-way.
Dimensions:
- Height: 7.6mm.
- Length: 91.44mm.
Resources:
- Datasheet.
