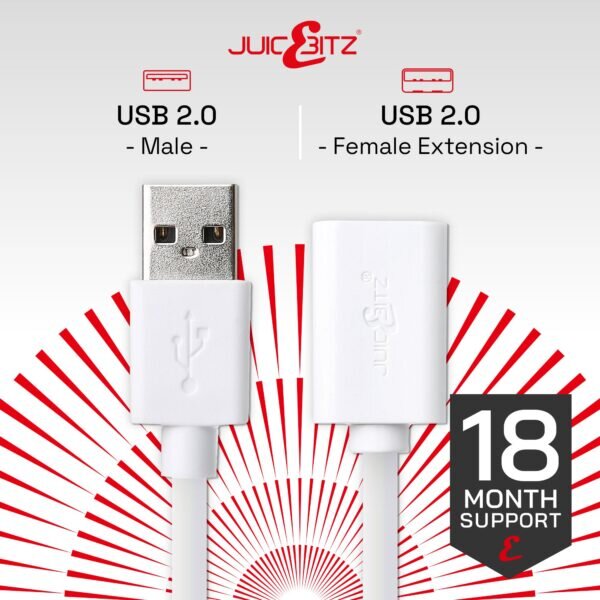

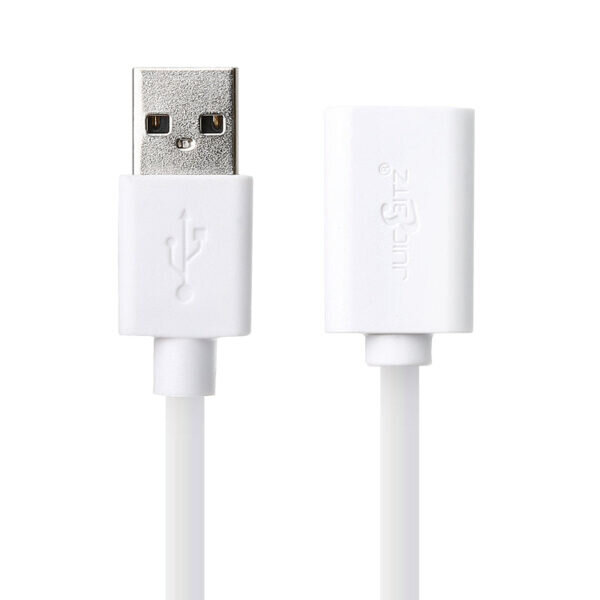

USB 2.0 Male to Female High Speed Extension Charging & Data Cable – White
22AWG USB 2.0 Male to Female Extension Cables offer versatility all round. An ideal extension lead for office and home use.
Our extensive range of cables come in various American Wire Gauge (AWG), also known as the Brown & Sharpe wire gauge which is a logarithmic stepped standardized wire gauge system used since 1857 predominantly in North America for the diameters of round, solid, nonferrous, electrically conducting wire. Dimensions of the wires are given in ASTM standard B 258.
We have specifically designed these with a thick 22AWG Pure Tinned Copper Core (TCu) material for a low resistance, high performance product.
Specifications:
- American Wire Gauge (AWG): 22C/28D (C=Charge, D=Data)
- Connector 1: Male USB 2.0 (Type A) 4 Pin; Gold Plated Pins
- Connector 2: Female USB 2.0 (Type A) 4 Pin; Gold Plated Pins
- Conductor: Pure Copper, [19/0. 08+/-0.008MM] + [21/0. 18+/-0.008MM]
- Specification: 2725#28/2C+#22/2C+AB
- Braid Conductor Size: 16*5*0.10mm +/- 0.008mm
- Aluminium Mylar Foil Shield: 15um
- Jacket: PVC 60P, Half Matt
- Diameter: 4.2mm +/- 0.10mm
- Certifications: UKCA, CE/ROHS, FCC
- Fastener Included: Yes, Velcro
- Warranty: 18 Months.
Compatibility:
- USB 2.0 Type A Female to USB 2.0 Type A Female
- Supports High Speed Data Transfer up to 480Mbps
All manufacturers will state in their manuals what cable is used, or you can find the information on sites such GSM Arena or you can contact us via our contact page or call 01723 332269 and one of our advisers will be happy to help.
